HDPE conduit

Built for demanding underground runs

Our conduit has a smooth internal and external wall and is produced in black with red or orange stripes. Other colors can be produced for project requirements. Available controlled outside diameters run from 1¼ inches to 12 inches under ASTM D3035 and F2160.

Pipe is produced across a wide range of diameters, colors and SDRs. Installed capacity supports outside diameters from 1½ inches to 60 inches for special projects. Virgin resin is sourced from quality suppliers.

Long rolls
Flexible routing
Low coefficient of friction
Chemical and corrosion resistance
High impact resistance
Structural strength
Lighter pipe
Higher temperature range
Excellent electrical insulation
Service life greater than 50 years
Protection against rodents

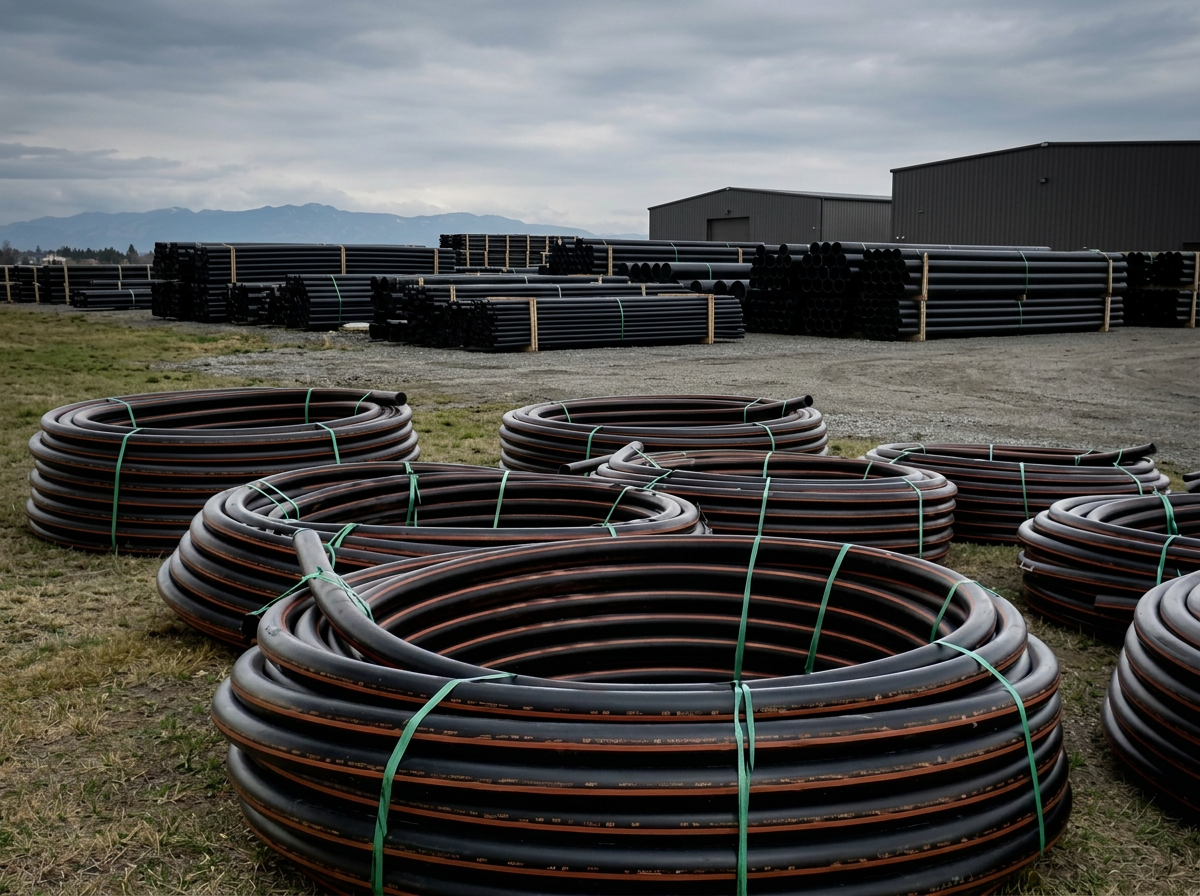

Coils of black HDPE conduit with colored stripes

Standards

  • CFE DF110-23
  • NMX-E-242/2
  • ASTM D3035
  • ASTM F2160
  • ISO 9001 & ISO 14001 certified

Product range

  • Standard SDRs: 11, 13.5, 15.5, 17, 19 and 21
  • Standard colors: black with orange or red stripes
  • Standard diameters: 1½–65 inches
  • 50 ft sticks for larger diameters
  • Coils from 500–10,000 ft, diameter dependent

Installation

  • Directional drilling
  • Cracking
  • Sliplining
  • Butt fusion, electrofusion or mechanical joints
  • Smooth wall supports transitions and UV protection

Applications

Residential, commercial and industrial electrical installations for high-, medium- and low-voltage cables
Fiber-optic cable protection
Distribution, transmission and telecommunications lines
Protection of telephone wiring and computer networks

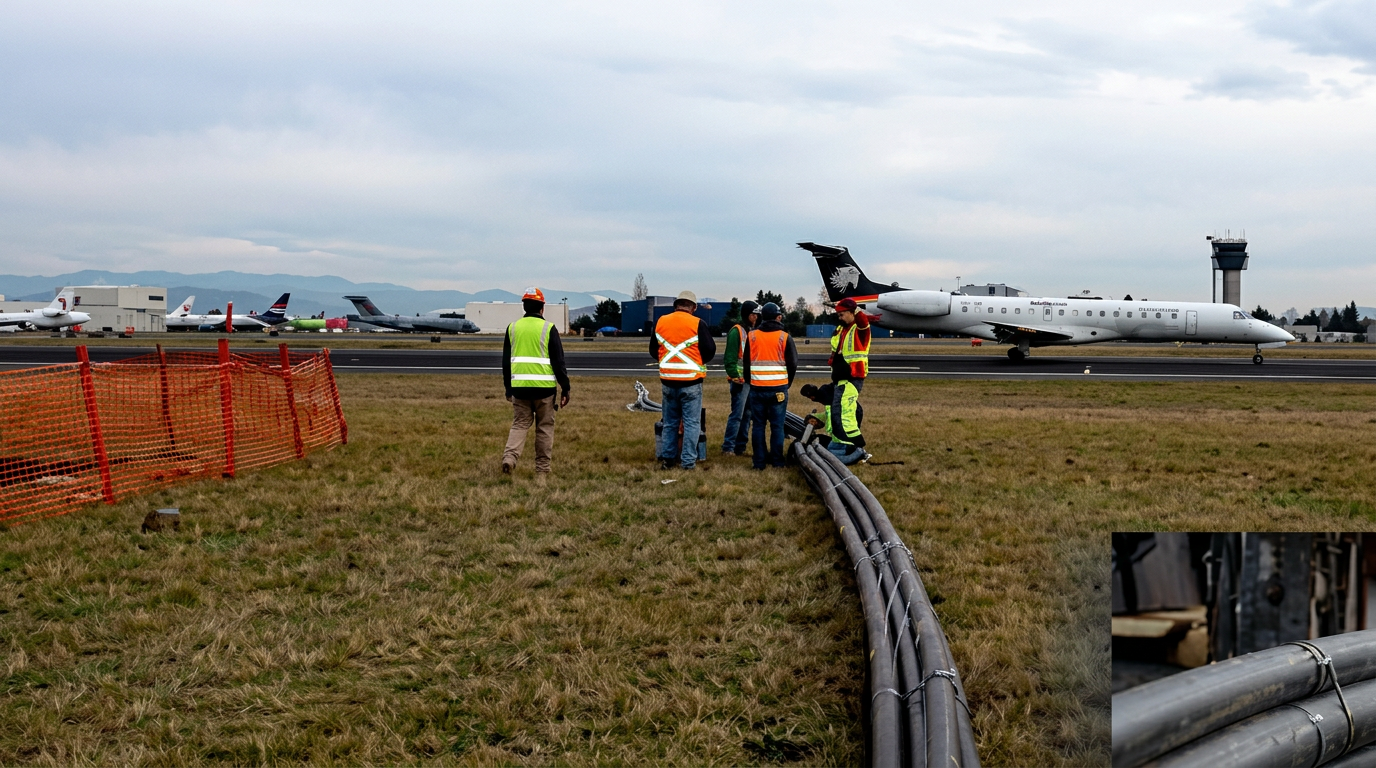

HDPE conduit being installed at a field project

Dimensions

Common dimensions and tolerances

Wall values are shown as thickness / tolerance in millimeters. Scroll horizontally to review all SDR columns.

Swipe to view all
Nominal mmNominal inOutside diameter mm / inOD tol. (+/−)SDR 11SDR 13.5SDR 15.5SDR 17SDR 19SDR 21
321 1/4"42.2 / 1.6600.13.8 / 0.53.1 / 0.52.7 / 0.52.5 / 0.52.2 / 0.52.0 / 0.5
381 1/2"48.3 / 1.9000.24.4 / 0.53.6 / 0.53.1 / 0.52.8 / 0.52.5 / 0.52.3 / 0.5
502"60.3 / 2.3750.25.5 / 0.74.5 / 0.53.9 / 0.73.6 / 0.53.2 / 0.52.9 / 0.5
602 1/2"73.0 / 2.8740.26.6 / 0.85.4 / 0.64.7 / 0.84.3 / 0.53.8 / 0.53.5 / 0.5
753"88.9 / 3.5000.28.1 / 1.06.6 / 0.85.7 / 1.05.2 / 0.64.7 / 0.54.2 / 0.5
1004"114.3 / 4.5000.510.4 / —8.5 / —7.4 / —6.7 / —6.0 / —5.4 / —
1255"142.5 / 5.5630.712.9 / —10.6 / —9.2 / —8.4 / —7.5 / —6.8 / —
1506"168.3 / 6.6250.815.3 / —12.5 / —10.8 / —9.9 / —8.9 / —8.0 / —
2008"219.1 / 8.6251.019.9 / —16.2 / —14.1 / —12.9 / —11.5 / —10.4 / —
25010"273.1 / 10.7501.224.8 / —20.2 / —17.6 / —16.1 / —14.4 / —13.0 / —
30012"323.8 / 12.7501.429.4 / —24.0 / —20.9 / —19.1 / —17.0 / —15.4 / —

Routing data

Minimum radius of curvature

Each SDR value is shown as wall thickness / minimum bend radius in millimeters.

Swipe to view all
Nominal mmNominal inOD mmSDR 9SDR 11SDR 13.5SDR 15.5SDR 17
321 1/4"42.23.8 / 4343.1 / 5662.7 / 7342.5 / 8692.2 / 968
381 1/2"48.34.4 / 4623.6 / 6053.1 / 7822.8 / 9252.5 / 1031
502"60.35.5 / 5084.5 / 6683.9 / 8693.6 / 10293.2 / 1143
602 1/2"73.06.6 / 5545.4 / 7114.7 / 9474.3 / 11253.8 / 1257
753"88.98.1 / 6056.6 / 7985.7 / 10395.2 / 12324.7 / 1377
1004"114.310.4 / 6718.5 / 8897.4 / 11636.7 / 13846.0 / 1549
1255"142.512.9 / 72410.6 / 9689.2 / 12708.4 / 15117.5 / 1707
1506"168.315.3 / 78512.5 / 104910.8 / 13829.9 / 16488.9 / 1849
HDPE pipe at the manufacturing facility

Project support

Need another diameter or SDR?

Other dimensions and SDRs are available. Send us your drawings, footage and installation requirements for a project-specific recommendation.

Request a quote
